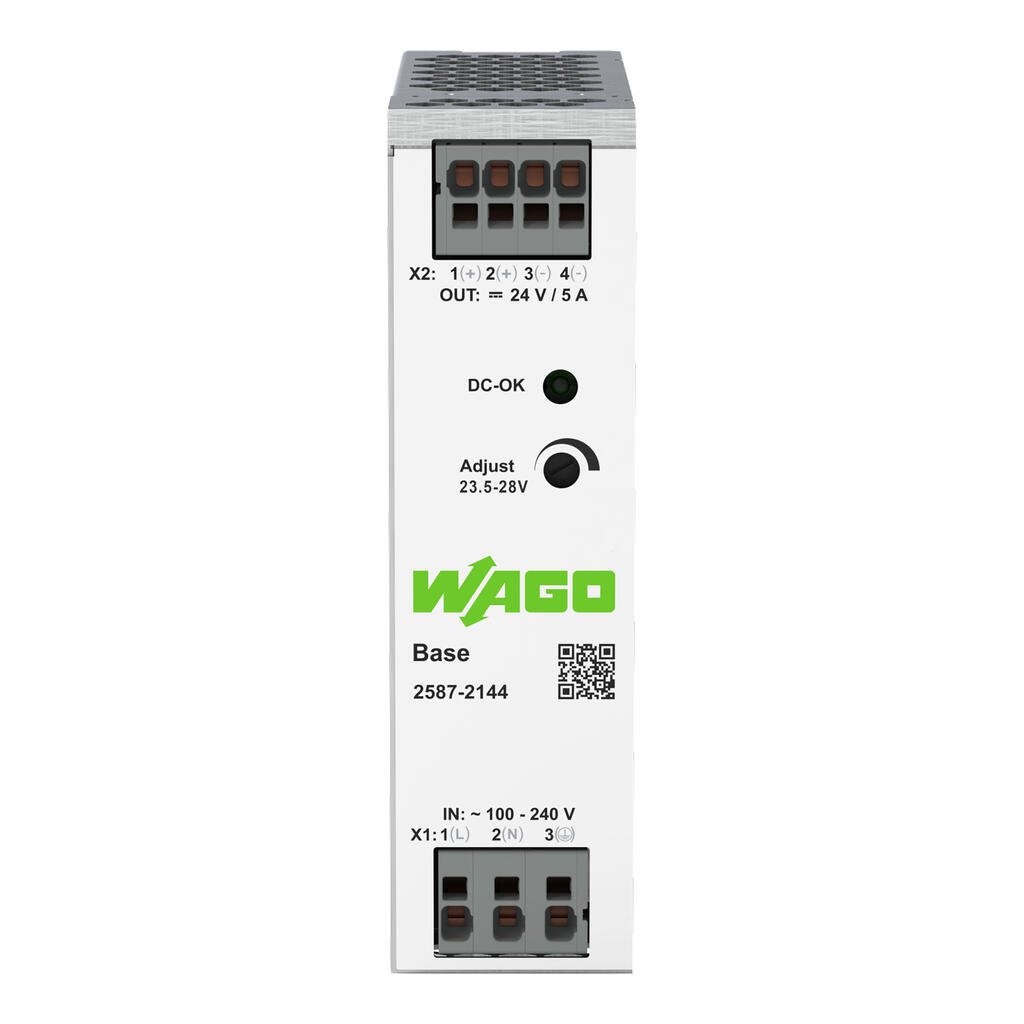

Base Power Supply Unit Switched 5A 24V DC

The Wago power supply base with the industry proven push-in Cage Clamp connection provides essential functionality during operation and stands out for its cost-effectiveness. It offers quick, reliable and tool-free connections, along with good efficiency. Reliable spring pressure connections ensure stable input and output connections, even under vibrations. The 2587 series is designed for continuous operation, even in extreme conditions within control cabinets and its compact design provides valuable space saving in the control cabinet too. Dimensions: 125 x 35 x 110mm (H x W x D).

• 5A output current
• Compact design
• The DC OK LED allows easy monitoring of the operating status
• Temperature range -30 to +70°C
• Suitable for both parallel and series operation
• Natural convection cooling when horizontally mounted
• Electrically isolated output voltage (SELV) per EN 62368-1/UL 61010-1
• Rated IP20
